CMS-60
FEATURES SPECS STRUCTURE SOLUTIONS DOWNLOADS

SYSTEM SPECS

System software
CMS logo
Access Control
User Accounts
  • Create unlimited user accounts and authorize each account to possess different access rights

Authentication
  • Secure the access to Web Manager and Media Folder by usernames and passwords
Media Player Management
Group Management
  • Create a maximum of five-layer groups to organize and monitor the functioning status of
    SMP players

User Interface
  • View a list of all SMP players controlled by the CMS server in a tree structure

Position
  • Locate SMP players on Google Maps when SMP players activate the location function
Content Updates and Management
Sync Destination
  • Assign each group with one media folder and synchronize contents automatically to all SMP players
    based on a group basis

Methods
  • Upload files to CMS by FTP, Network Shares (Network Neighborhood), and CMS’s Web Manager

Capacity
  • Update contents to max. 250 SMP players simultaneously. Can be tailored up to 1000 SMP players.

Sync Source
  • Create folders and sub-folders in CMS to store and organize multimedia files

User Interface
  • Manage files with two view modes, icon and list, and select files by the file filter

Media Types
  • Synchronize playlist, skin, program, font, clock, and all multimedia files in the CMS’s Media Folder to SMP players
Central Scheduling
Playback
  • View type: calendar or time table
  • Schedule mode: once, daily, weekly, monthly, yearly, and location
  • Playback type: able to edit scheduled tasks in the master schedule and take further steps to edit tasks for each zone in the sub-schedule for the Skin playback mode
  • Media type: include skin, program, playlist, video, image, ticker, or HTML/Flash in scheduled tasks

Emergency
  • Arrange emergency messages with skin, program, playlist, video, image, or HTML/Flash

Volume
  • Set schedules to adjust SMP’s volume
System Settings
Languages
  • User Interface: Chinese (Traditional), Chinese (Simplified), English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai
  • Ticker Support: Unicode (UTF-8) compatible languages; able to use default fonts or upload TTF fonts (*1) to a specific group.

Time
  • Set system time manually or synchronize the clock from an NTP server
Remote Diagnostics and Maintenance
Self-repair
  • Able to restart/shutdown the system and backup/restore
    configurations remotely

Log
  • Create log files recording the system status

System Update
  • Automatic notification of patch and firmware updates

Hardware Monitor
  • Check utilization of CPU, system DRAM, and hard drive
Network
Protocol
  • Support static IP and dynamic IP (DHCP)
  • Support IP, TCP, UDP, ICMP, HTTP, DHCP, RTB, SMB/CIFS, FTP
Resources
Cloud-based
  • Provide templates and materials in Library and Online Resources
Web Manager
Recommended browsers
  • IE 11 or later, Chrome 71 or later, Firefox 56 or later
CMS logo
Player Management
  • Check SMP’s system information, log records and content update status in details

Multiplayer Configuration
  • Configure more than one player at the same time, including multimedia playback, local schedule and system settings

Screenshot
  • Check the screenshots of a maximum of 15 SMP players per page

Mail Alert
  • Send an alert notification by Email to multiple users whenever the following event is detected: disconnect, connect, or shutdown
  • Send Email immediately or upon a pre-set schedule

Patch Management
  • Synchronize patches manually or automatically from Online Resource Server
  • Update patches to selected SMP players immediately

HARDWARE SPECS

Dimension
483 (W) x 450 (D) x 44 (H) mm; 1U Rack
Weight
8 Kg (May differ between models)
CPU
2.7G Hz or above
Internal Storage
3.5’’ SATA Hard-disk drive; 1TB (Can be upgraded by user's request)
Support AV-in
HDMI Capture Card (USB UVC compatible device, Format: MJPG)
Network
10/100/1000 Mbps Ethernet
Display Output
VGA D-SUB x 1
Power
110~240V AC (±10%)
Others
USB 3.0 x 4; USB 2.0 x 2, PS/2 Keyboard/Mouse x 1
Certificate
CE/FCC certificate

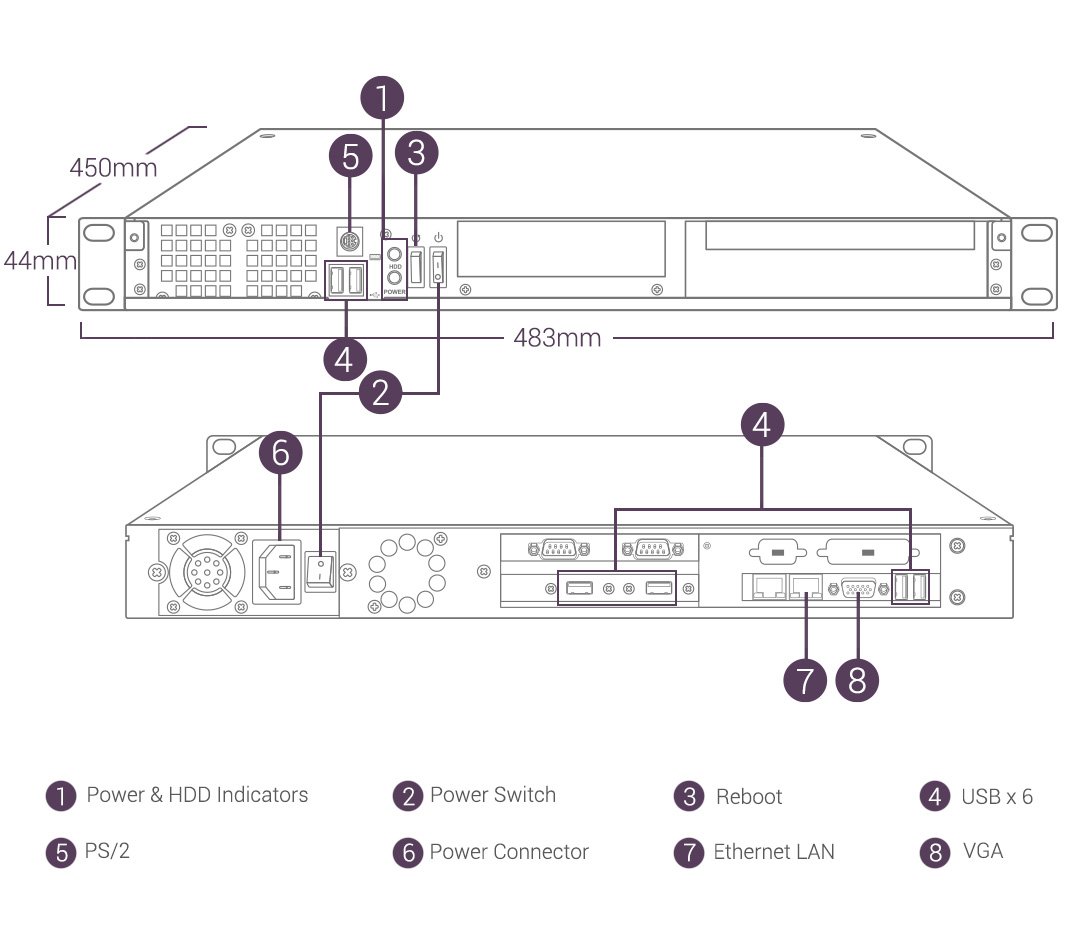

CMS-60 Front View & Rear View
* All specifications subject to change without notice.
